HE40B-6-1000-6-L-5 bộ mã hoá vòng quay 40mm

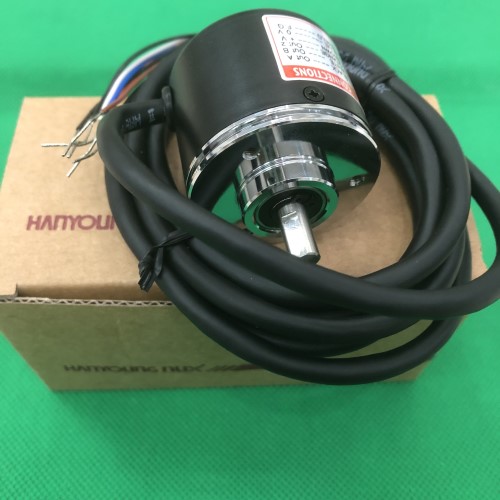

Chi tiết sản phẩm HE40B-6-1000-6-L-5

Chức năng: Encoder - Bộ mã hóa vòng quay

Mã sản phẩm : HE40B-6-1000-6-L-5

Hãng : Hanyoung

Kích thước: 40 mm

Đường kính ngoài trục : Ø6mm

Độ phân giải: 1000 xung/vòng

Pha ngõ ra : A , B , Z , /A , /B , /Z phase

Ngõ ra điều khiển: Line dtiver

Nguồn cấp : 5 VDC

Video giới thiệu

Hướng dẫn chọn mã

HE-Huong-Dan-Chon-ma

Bảng kích thước

HE-Kich-Thuoc

Hướng dẫn đấu dây

HE-Huong-Dan-Dau-Day

Thông số kỹ thuật

Mode		HE_ _ B-_-_-_-N-_	HE _ _ B-_-_-_-O-_	HE _ _ B-_-_-_-T-_	HE _ _ B-_-_-_-L-_
Output type		NPN Voltage output	NPN Open collector output	Totem Pole Output	Line Driver Output
Electrical Specification	Output signal	A, B, Z phase			A, B, Z, /A, /B, /Z phase
	Phase difference on Output	Phase difference between A. B phase : T/4 ± T/8(Cycle of A phase = T)
	Max. Response Frequency	300 kHz
	Power voltage	5 - 12 V d.c / 12 - 24 V d.c ± 5%			5/12/24 V d.c ± 5%
	Current Consumption	60 mA Max.(No - load)
	Connection method	WIRE
	Control output	Load voltage : 30 V Max. Load current : 30 mA Max. Residual voltage : 0.4 V Max.		For Low Load current:30㎃ max. Residual voltage: 0.4 V max. For High Load current:10㎃ max. Remaining voltage: Power Voltage2.5Vmin.	For Low Load current:20㎃max. Residual voltage: 0.4 V max. For High Load Current 20㎃max. Remaining voltage: 0.4 V max.
	Response Time	1µs Max. (Cable length 2.0 m / sink = 30 mA)		1µs Max. (Cable length 1.5 m / sink = 10 mA)	1µs Max. (Cable length 1.5 m / sink = 30 mA)
Mechanical Specification	Starting Torque	Ø40 : 4 x 10-3 N . m Max. / Ø50 : 7 x 10-3 N . m Max.
	Moment of inertia	Ø40 : 4 x 10-6 kg . m2 Max. / Ø50 : 7 x 10-6 kg . m2 Max.
	Permissible Shaft Loading	Ø40 : Radial : Within 30N, Thrust : Within 20N / Ø50 : Radial : Within 50N, Thrust : Within 30N
	Max. Permissible Revolution	5000 r/min
Insulation Resistance		Over 100 MΩ(Base on 500 V d.c mega between terminal and case)
Dielectric Strength		800 V a.c(Between terminal and case at 60 Hz for 1 minute)
Vibration Resistance		10 - 55Hz(Cycle for 1 minute), Double amplitude width: 1.5mm, Each X Y Z direction for 2 hours
Shock Resistance		Ø40 : Max 490 ㎨, Ø50 :Max 735 ㎨
Ambient Temperature		-10 ~ 70 °C(Without condensation), Storage Temperature : -25 ~ 85 °C
Ambient Humidity		35 ~ 85% R.H.
Protection		Protection IP 50(IEC Standard)
Wire Specification		5 P, Ø5.0 ㎜, length: 1.5 m, shield cable(HE40B, HE50B cable length option : 2 m, 8 m, 10 m) (Line drive type : 8P, Ø5.0 ㎜, length : 1.5 m, shield cable)
Weight		Ø40 : 170 g, Ø50 : 200 g
Accessory		Ø 40 : Ø 6.0 ㎜ / Ø 8.0 ㎜ coupling, Ø 40 : Ø 8.0 ㎜ coupling, bracket
