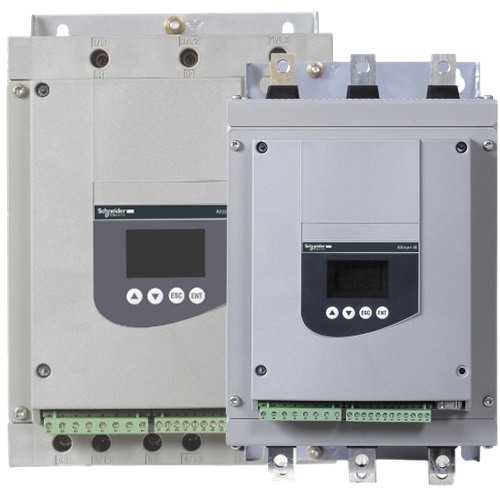

Bộ khởi động mềm ATS48C41Q 410A 400V
GIÁ ĐÃ BAO GỒM VAT
Bộ khởi động mềm ATS48C41Q
Dòng sản phẩm : Khởi động mềm
Công suất : 220 kW 400 V
Mức độ bảo vệ : IP00
Bộ khởi động mềm ATS48C41Q
Dòng sản phẩm : Khởi động mềm
Công suất : 220 kW 400 V
Mức độ bảo vệ : IP00
| Range of product | Altistart 48 |
| Product or component type | Soft starter |
| Product destination | Asynchronous motors |
| Product specific application | Heavy duty industry and pumps |
| Device short name | ATS48 |
| utilisation category | AC-53A |
| Ue power supply voltage | 230...415 V - 15...10 % |
| power supply frequency | 50...60 Hz - 5...5 % |
| motor power kW | 90 kW at 230 V connection in the motor supply line for severe applications 110 kW at 230 V connection in the motor supply line for standard applications 160 kW at 230 V connection to the motor delta terminals for severe applications 160 kW at 400 V connection in the motor supply line for severe applications 220 kW at 230 V connection to the motor delta terminals for standard applications 220 kW at 400 V connection in the motor supply line for standard applications 250 kW at 400 V connection to the motor delta terminals for severe applications 315 kW at 400 V connection to the motor delta terminals for standard applications |
| Device connection | In the motor supply line To the motor delta terminals |
| protection type | Phase failure: line Thermal protection: motor Thermal protection: starter |
| Standards | EN/IEC 60947-4-2 |
| Product certifications | DNV C-Tick CSA NOM 117 TCF UL SEPRO GOST CCC |
| marking | CE |
| Discrete input number | 5 |
| discrete input type | PTC, 750 Ohm at 25 °C (Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm |
| discrete input logic |
Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
|
| minimum switching current | 10 mA at 6 V DC for relay outputs |
| Discrete output number | 2 |
| discrete output type | (LO1) logic output 0 V common configurable (LO2) logic output 0 V common configurable (R1) relay outputs fault relay NO (R2) relay outputs end of starting relay NO (R3) relay outputs motor powered NO |
| analogue output type | Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm |
| Communication port protocol | Modbus |
| Connector type | 1 RJ45 |
| Communication data link | Serial |
| Physical interface | RS485 multidrop |
| Transmission rate | 4800, 9600 or 19200 bps |
| Function available | External bypass (optional) |
| Operating position | Vertical +/- 10 degree |
| Height | 670 mm |
| Width | 400 mm |
| Depth | 300 mm |
| Net weight | 51.4 kg |
| electromagnetic compatibility | Conducted and radiated emissions level A conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
| relative humidity | 0…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| ambient air temperature for operation | 40…60 °C (with current derating of 2 % per °C) -10…40 °C (without derating) |
| Ambient air temperature for storage | -25…70 °C |
| operating altitude | <= 1000 m without derating > 1000...2000 m with current derating of 2.2 % per additional 100 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 39 cm |
| Package 1 Width | 58 cm |
| Package 1 Length | 78.5 cm |
| Package 1 Weight | 54.5 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 1 |
| Package 2 Height | 75 cm |
| Package 2 Width | 60 cm |
| Package 2 Length | 80 cm |
| Package 2 Weight | 63 kg |
| Warranty | 18 months |
| Ứng dụng | N/A |
|---|---|
| Dòng series | N/A |
| Xuất xứ | N/A |
| Điện áp | N/A |
Bảo hành 18 tháng
