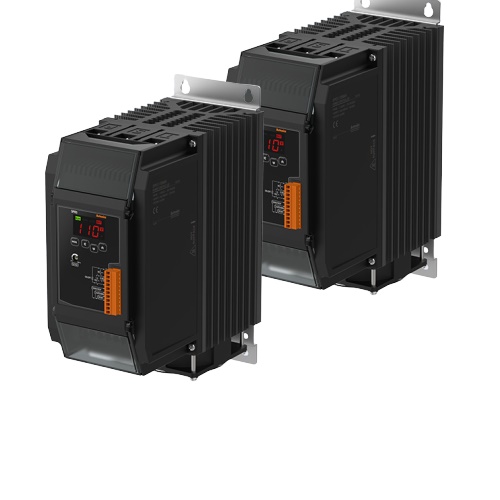

TPR-2G35L-F Bộ điều khiển nguồn Thyristor Hanyoung

Chi tiết sản phẩm TPR-2G35L-F

- Chức năng: Bộ điều khiển nguồn Thyristor

- Mã sản phẩm : TPR-2G35L-F

- Hãng : Hanyoung

- Rated current: 35A

- Sử dụng điện áp: 220 V a.c. 50/60 Hz

- Phương pháp điều khiển: Kiểm soát chu kỳ cố định

Model	Code			Content
TPR-2G				Single-phase power regulator
Rated current	25			25 A
	35			35 A
	50			50 A
	70			70 A
Used load voltage		L		220 V a.c. 50/60 Hz
Used load voltage		H		380 V a.c. 50/60 Hz
Control method			P	Phase Control
			F	Fixed Cycle Control
			V	Variable Cycle Control

Model	Low	TPR-2G25L	TPR-2G35L	TPR-2G50L	TPR-2G70L
	High	TPR-2G25H	TPR-2G35H	TPR-2G50H	TPR-2G70H
Power Voltage	Low	220 V a.c.
	High	220 V a.c.
Power frequency		50/60 Hz (Dual usage)
Rated current (Based on 40 ℃)		25 A	35 A	50 A	70 A
Applied load		Resistive load
Control Input	Current Input	4 - 20 mA d.c. (Impedance 100 Ω)
	Voltage Input	-		1 - 5 V d.c
	Contact Point Input	ON / OFF		-
	External V.R	External volume (10 KΩ)
Control method		Phase control (fixed cycle, variable cycle cycle control option selected)
Movement type		SOFT START, SOFT UP/DOWN (Time 0 to 60 seconds)
Output voltage		More than 98 % of the power voltage (in case of maximum current input)
Cooling method		Natural cooling			Forced cooling
Display method		Forced cooling
Insulation Resistance		500 V d.c. 100 MΩ
Dielectric strength		2,500 V a.c. 50/60 Hz for 1 min
Line noise		Noise by noise simulator (Pulse width 1 us : ±2 kV)
Operating ambient temperature		0 ~ 50 ℃ (Without condensation)
Ambient humidity		30 ~ 85 % R.H.
Storage temperature		-25 ~ 70 ℃
Approval
Weight(g		740		1730
