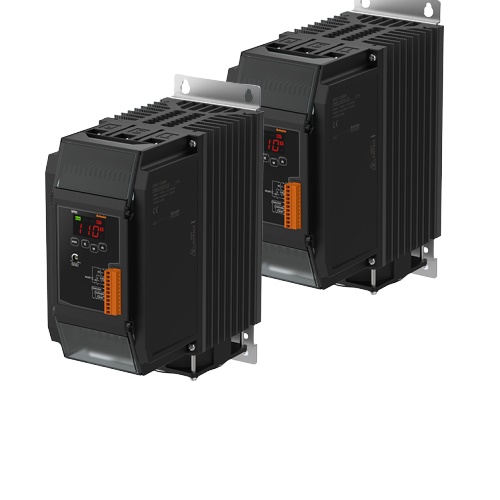

TPR-2SL070H bộ điều khiển nguồn

Chi tiết Bộ chỉnh lưu TPR-2SL070H

- Dòng sản phẩm: Bộ chỉnh lưu

- Mã sản phẩm: TPR-2SL070H

- Hãng sản xuất: Hanyoung

- Dòng tải 70A

- Điện áp 380V-440V AC

Model	Low	TPR-2SL040L	TPR-2SL055L	TPR-2SL070L	TPR-2SL090L	TPR-2SL110L	TPR-2SL130L
	High	TPR-2SL040H	TPR-2SL055H	TPR-2SL070H	TPR-2SL090H	TPR-2SL110H	TPR-2SL130H
Power supply voltage		100 - 240V a.c ( Low) / 380 - 440V a.c (High)
Circuit input power		100 - 240V AC
Power frequency		50 Hz/60 Hz (Dual usage)
Rated current		40 A	55 A	70 A	90 A	110 A	130 A
Applying load		Load resistance
Control Input	Current input	4 - 20 ㎃ DC (Impedance : 100 Ω)
	Voltage input	1 - 5V DC
	Contact input	ON/OFF
	External V.R	External volume (10 ㏀)
Control method		Phase control, Fixed Cycle control, Variable Cycle control, ON/OFF control
Movement type		SOFT START, SOFT UP/DOWN
Output voltage		More than 98% of the power supply voltage (In case of maximum current input)
Cooling method		Natural cooling ( 40 A , 55 A, 90 A ), Forced cooling ( 110 A, 130 A, 160 A, 200 A )
Display method		Display by LED
Insulation resistance		Min 100 ㏁ (Base on 500Vd.c mega)
Output control range		0 ~ 100 %
Dielectric strength		3000 V a.c 50/60 Hz for 1 min
Line noise		Noise by noise simulator (3,000 V)
Storage temperature		-25 ~ 70 ℃
Ambient temperature		0 ~ 40 ℃ ( But without frostiness )
Ambient humidity		30 ~ 85 % R.H.
Weight		1388 g		1478 g	2820 g	3100 g

Model	Low	TPR-2SL160L	TPR-2SL200L
	High	TPR-2SL160H	TPR-2SL200H
Power supply voltage		100 - 240V a.c ( Low) / 380 - 440V a.c (High)
Circuit input power		100 - 240V AC
Power frequency		50 Hz/60 Hz (Dual usage)
Rated current		160 A	200 A
Applying load		Load resistance
Control Input	Current input	4 - 20 ㎃ DC (Impedance : 100 Ω)
	Voltage input	1 - 5V DC
	Contact input	ON/OFF
	External V.R	External volume (10 ㏀)
Control method		Phase control, Fixed Cycle control, Variable Cycle control, ON/OFF control
Movement type		SOFT START, SOFT UP/DOWN
Output voltage		More than 98% of the power supply voltage (In case of maximum current input)
Cooling method		Natural cooling ( 40 A , 55 A, 90 A ), Forced cooling ( 110 A, 130 A, 160 A, 200 A )
Display method		Display by LED
Insulation resistance		Min 100 ㏁ (Base on 500Vd.c mega)
Output control range		0 ~ 100 %
Dielectric strength		3000 V a.c 50/60 Hz for 1 min
Line noise		Noise by noise simulator (3,000 V)
Storage temperature		-25 ~ 70 ℃
Ambient temperature		0 ~ 40 ℃ ( But without frostiness )
Ambient humidity		30 ~ 85 % R.H.
Weight		3100 g
